Multi-sensor coordinate metrology at an entry-level price

Feedback measurement

Like almost all 3D coordinate measuring machines from Werth, these receive a complete correction of the 3D geometry. On this basis, a bidirectional 3D specification of the length measurement and probing errors for all sensors is carried out in accordance with practical requirements.

Process-stable image processing

Werth contour image processing is based on almost 40 years of experience and has many sophisticated functions. Automatic image processing guarantees high process stability even for difficult measurement tasks and operator-independent measurement results. All EasyScope® machines are equipped with low-distortion telecentric zoom optics so that the specification applies to the entire field of view.

Device configurations for every application

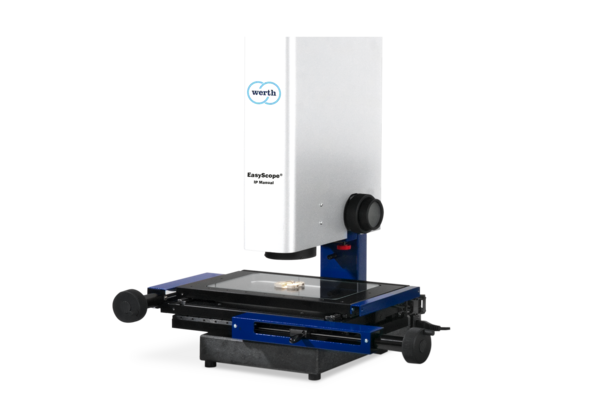

• EasyScope® IP Manual
• Manual operation with automatic image processing
• EasyScope® SolidState Zoom Plus
• Measuring range 200 mm x 100 mm x 200 mm
• Measurement sequence creation without programming thanks to operator guidance with MeasureGuide
• Traceable, documented and reproducible results, even for individual measurement tasks

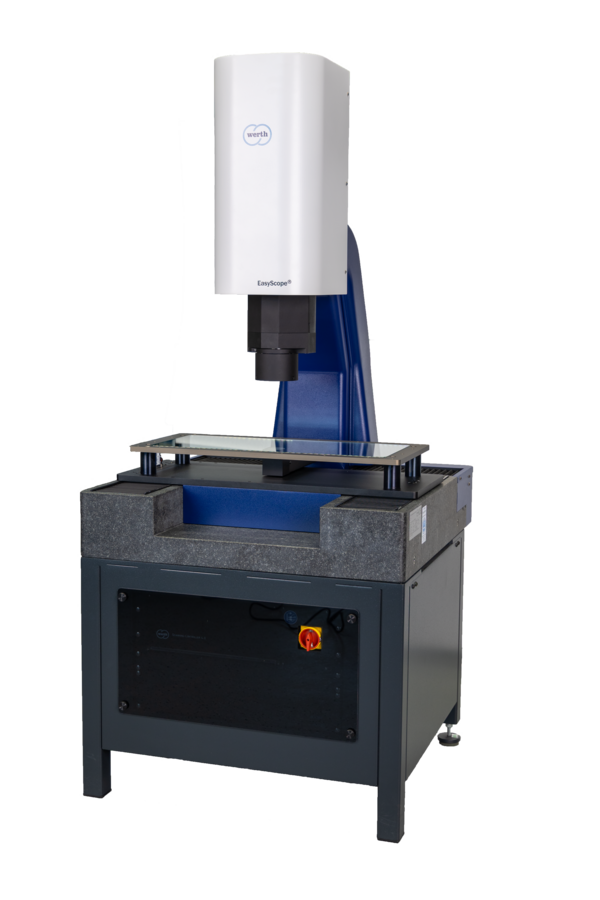

EasyScope® IP Automatic

• 3D coordinate measuring machine with image processing
• EasyScope® SolidState Zoom Plus
• Measuring range 200 mm x 200 mm x 200 mm
• Automatic pallet measurement
• Graphic user interface or CAD-supported measurement sequence creation
• Automatic measurement with image processing at the highest level

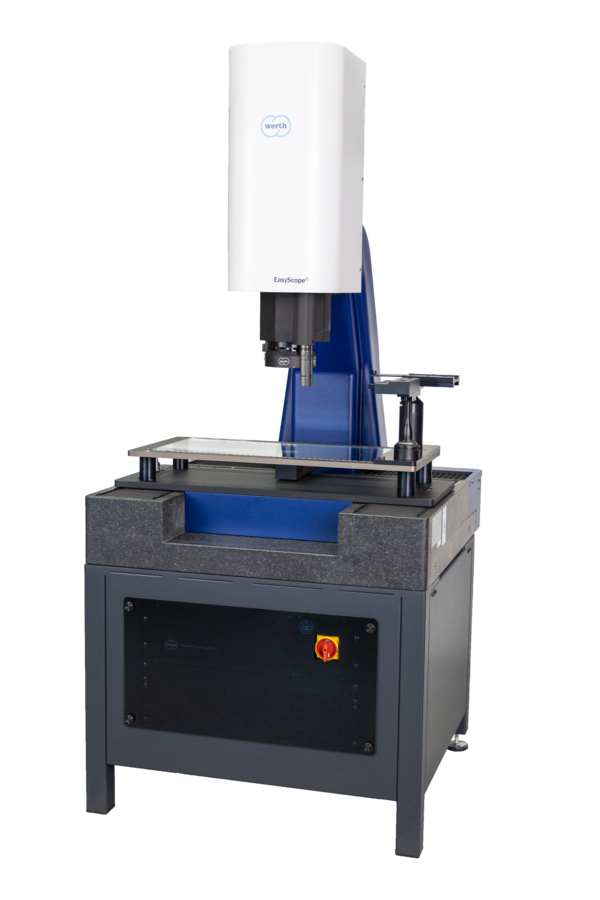

EasyScope® MultiSensor

• Real multi-sensor systems with image processing, laser distance sensor and scanning stylus
• EasyScope® MultiSensor Zoom with integrated Werth Laser Probe
• Measuring range 400 mm x 200 mm x 200 mm
• Full measuring range for combined optical measurements with MultiSensor
• Measurement with all sensors in one software package
• Automatic pallet measurement
• Graphic user interface or CAD-supported measurement sequence creation
• Fully-fledged multi-sensor coordinate metrology
