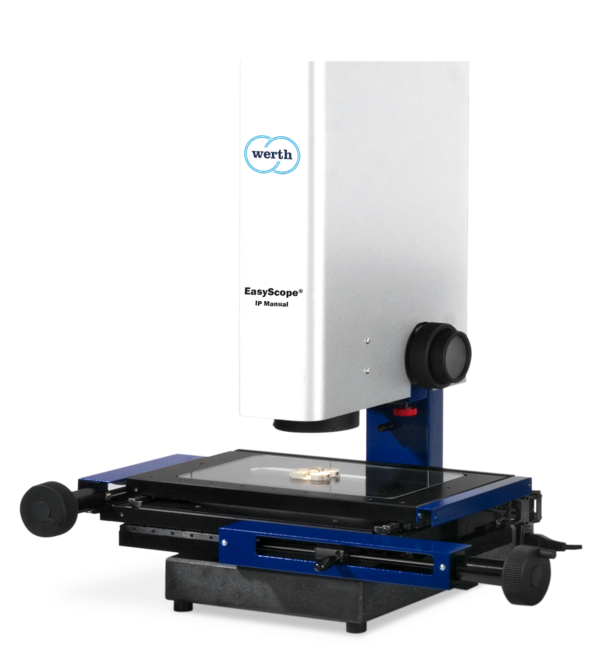

EasyScope®

Manual 3D measuring microscope

EasyScope®
Benefits

Automatic probing in three axes for shopfloor and measuring room

With manual operation, the EasyScope® offers automatic image processing, an optoelectronic zoom and autofocus for optical measurement in the vertical axis. For measurement in the Z axis, only the axis drive is moved manually – A focus variation process determines the measurement points independently of the operator. Typical applications include plastic plugs and housings, stamped and bent parts, lead frames and plates.

Please accept "Other" in the settings to watch this video.Other benefits

Other benefits

  • Optoelectronic zoom for fast zooming of small details or for switching to the overview image with a click of the mouse
  • Automatic zooming and light switching in the program sequences
  • Automatic recognition of measured geometric elements with Werth AutoElement
  • Navigation to the measuring positions saved in program sequences
  • High flexibility thanks to 8-segment darkfield incident light and transmitted light illumination
  • Brightfield incident light can be integrated into the beam path
  • Specification following VDI 2617
Technical Data
Technical Data

Design

Manual 3D image processing measuring machine in table-top design

Measuring range

X = 200 mm, Y = 100 mm, Z = 200 mm

Accuracy

Permissible length measurement error up to 2.5 µm

Sensors and Accessories
Filter

Further equipment for EasyScope®

Werth Image Processing IP
Sensor
Werth Image Processing IP
Autofocus sensor
Sensor
Autofocus sensor
Software - The universal measurement software for coordinate measuring machines with optics, probe, computed tomography and multi-sensor systems
Software

The universal measurement software for coordinate measuring machines with optics, probe, computed tomography and multi-sensor systems

The operation of machines with a wide variety of sensors, as well as the evaluation of volume data and point clouds ...
